 | Three Module Example |  |
| Three Module Example | |

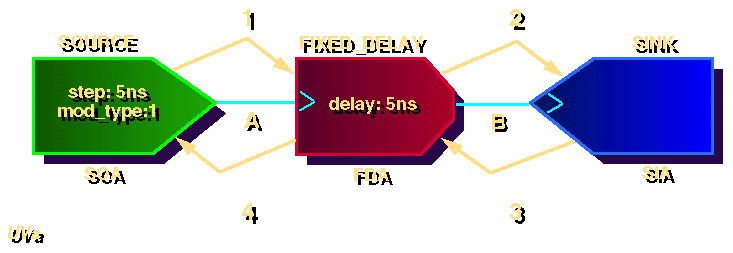

| Event | Time | Description |
| 1 | 0 ns | Source places token on A |
| 2 | 5 ns | Delay places token on B |
| 3 | 5 ns | Sink acks token on B |
| 4 | 5 ns | Delay acks token on A |
| 1 | 10 ns | Source places next token on A |
