1.2.2 How many Processes?

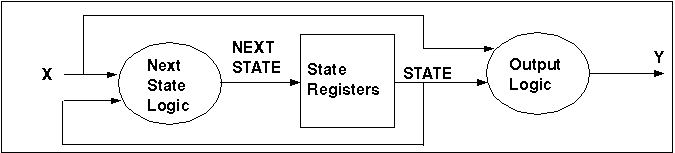

• Mealy Example, unregistered Outputs



• Output logic always in an own process or concurrent assignments!
• State register inference always in an clocked (STATE) process!
• Next state logic in an own process OR in the clocked process.
