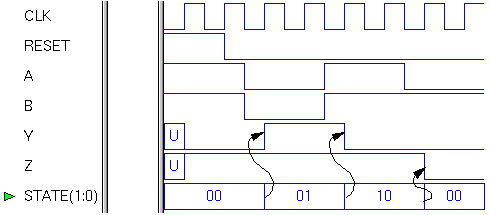

Waveform Registered Output Example (2)
No delay between STATE and output changes.
"Spikes" of original Mealy machine are gone!
